FREE / PAY WHAT YOU WANT
EQUIPMENT · PAR / STEP / STL

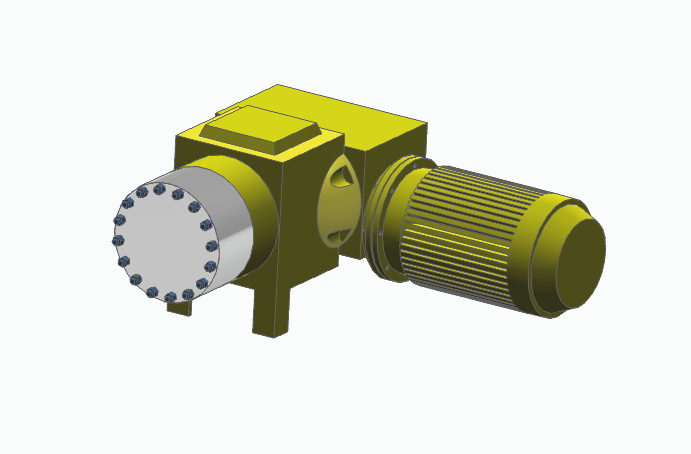

Diaphragm Pump
Motor-driven pump exterior with housings, flanged ports and repeated mechanical details for layout scenes.
DOWNLOADABLE 3D CAD
Industrial model catalog
Explore exterior-focused equipment and valve models built for early layouts, clearance studies, visualization and presentation work. Each purchase is delivered through Gumroad.
13 products7 valve models in the bundle3 common file formats
SHOP THE COLLECTION
Choose a model
Prices are shown in US dollars and may change on Gumroad. Open a product page to confirm its current contents before purchase.
BEST VALUE
7-MODEL BUNDLE
Industrial Valve Collection
Gate, pneumatic ball, cryogenic manual, threaded ball, high-velocity vent and globe valves plus a valve manifold.
EQUIPMENT · PAR / STEP / STL

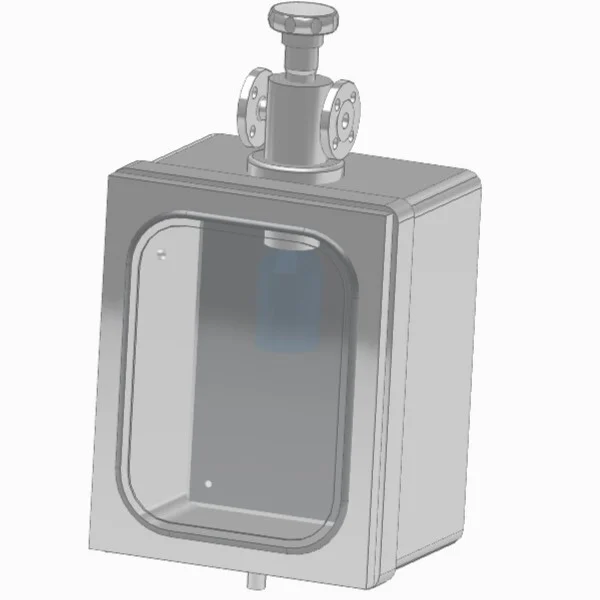

Safety Enclosure Cabinet
A detailed enclosure with doors, hardware, structural members and internal arrangement features.
EQUIPMENT · PAR / STEP / STL

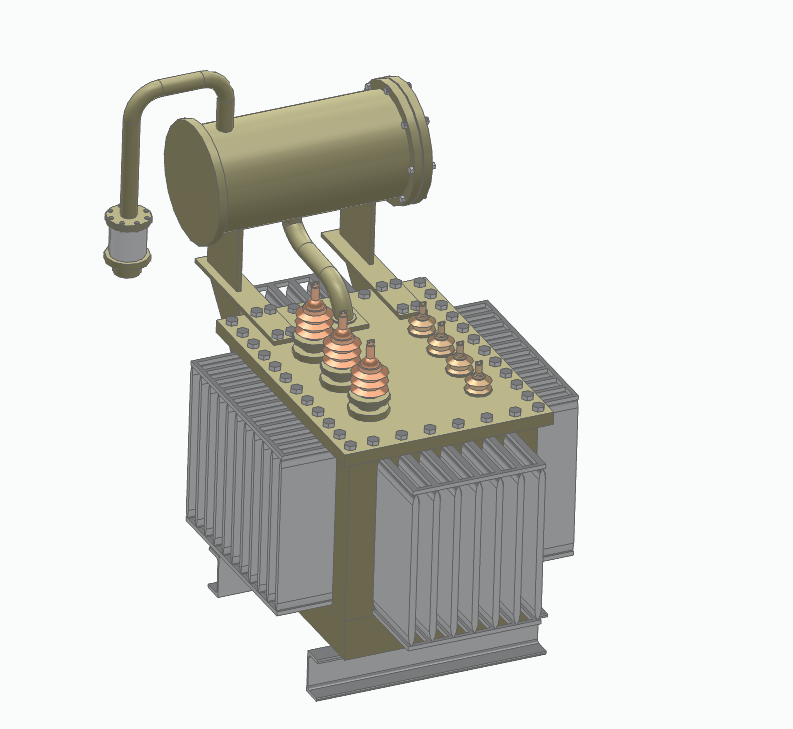

Oil-Immersed Transformer
Main tank, cooling sections, bushings, conservator and support details for industrial visualization.
VALVE · PAR / STEP / STL

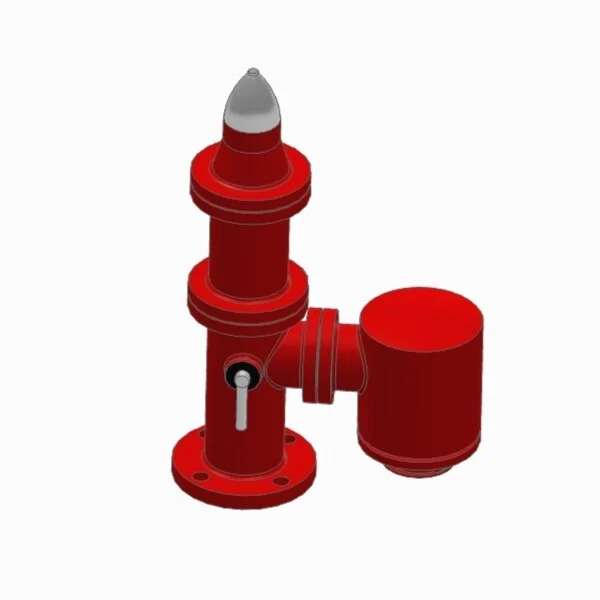

High-Velocity Vent Valve
A vertical vent-valve exterior suited to deck, tank and process-equipment arrangement studies.
VALVE · PAR / STEP / STL

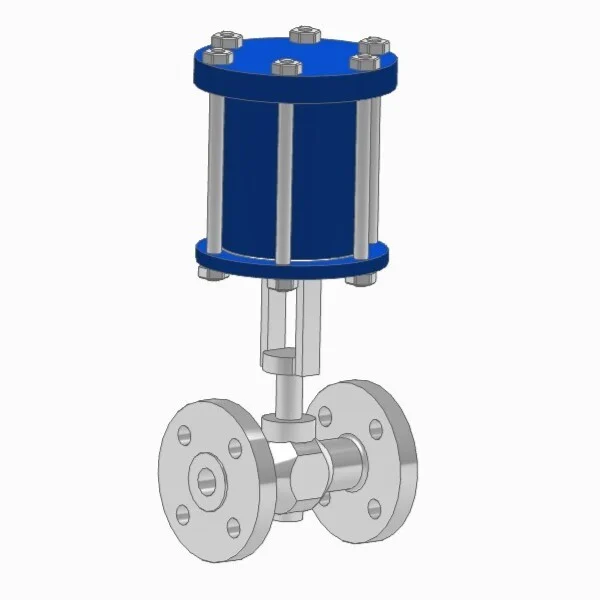

Pneumatic Actuated Ball Valve
Ball-valve body with a pneumatic actuator for skid layouts, piping visuals and clearance checks.
VALVE · PAR / STEP / STL

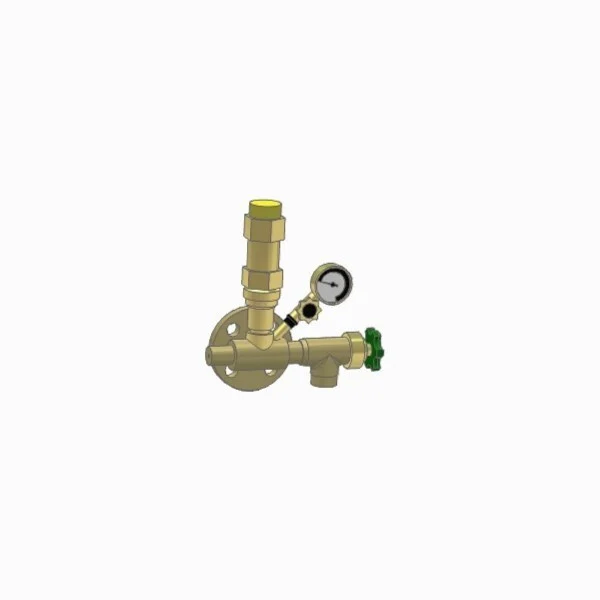

Valve Manifold Assembly
A compact multi-valve block for instrument and process-layout visualization.
VALVE · PAR / STEP / STL

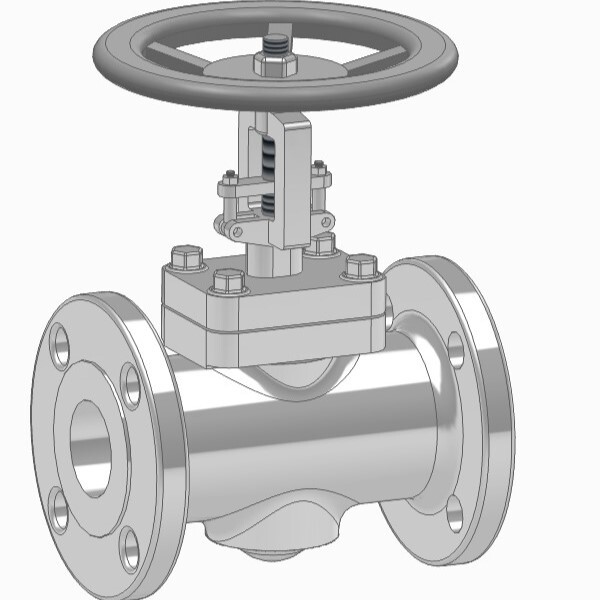

1-1/2 in Gate Valve
Handwheel-operated gate-valve exterior with flanged ends and bonnet details.
VALVE · PAR / STEP / STL

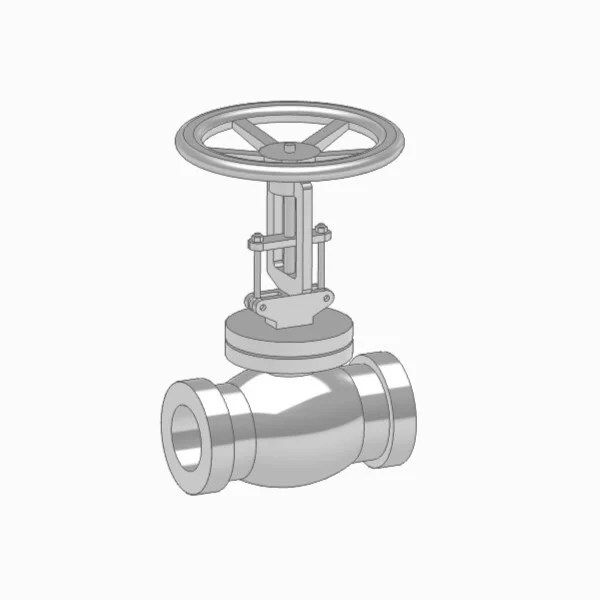

Cryogenic Manual Valve
Extended-bonnet manual valve exterior for low-temperature piping layouts and presentations.
INSTRUMENT · PAR / STEP / STL

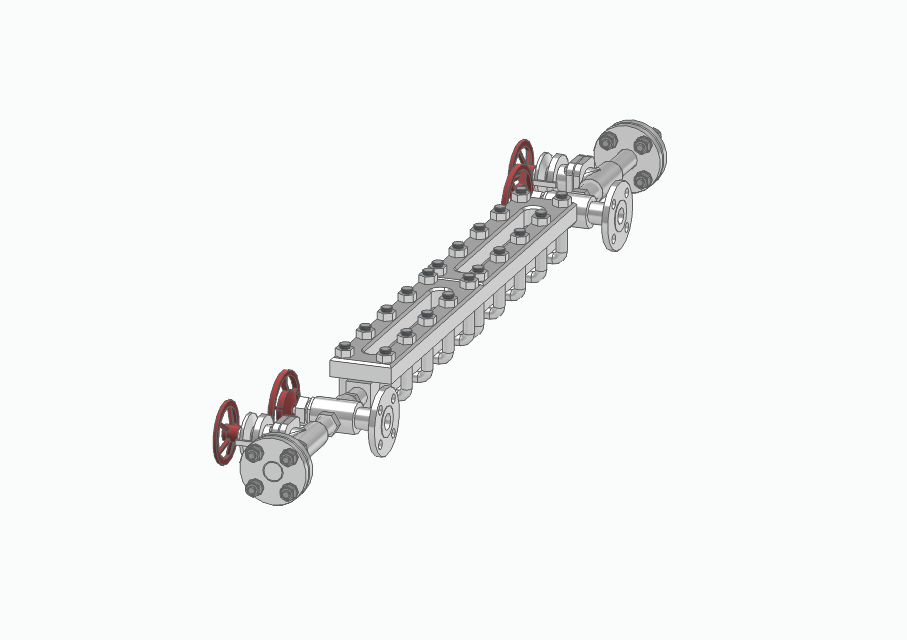

Reflex-Type Level Gauge
Gauge chamber, repeated covers, isolation valves and flanged process connections.
VALVE · PAR / STEP / STL

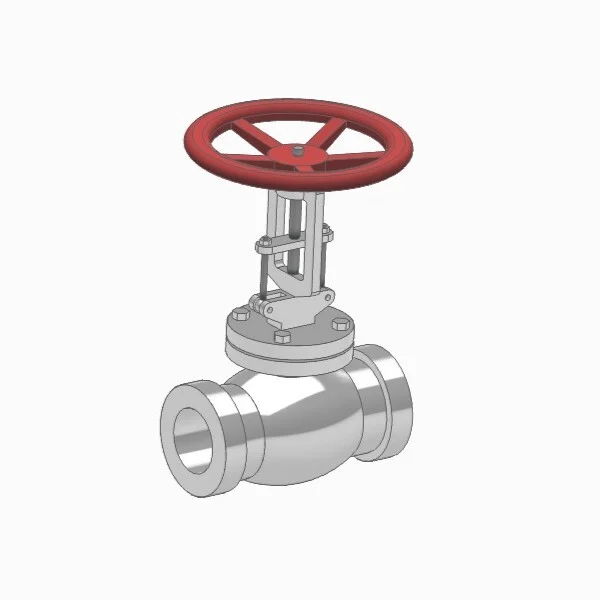

3/4 in Globe Valve
A compact handwheel globe valve for small-bore piping and equipment-layout scenes.
EQUIPMENT · PAR / STEP / STL

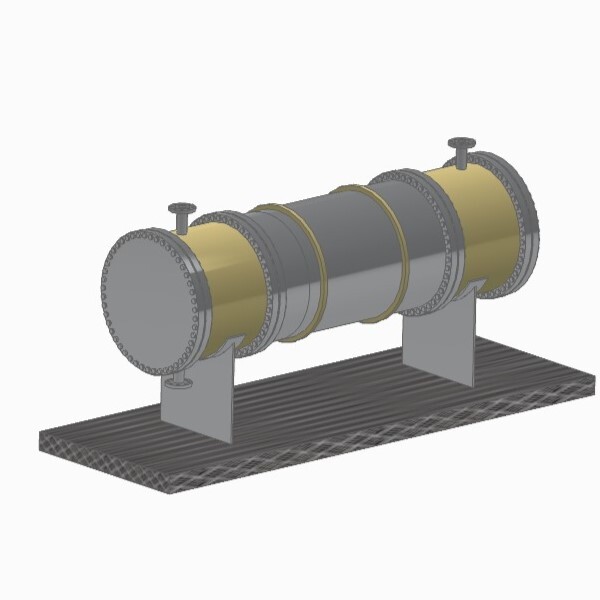

Horizontal Process Chamber
A clean equipment-envelope model for preliminary layouts, clearance studies and technical visuals.
VALVE · PAR / STEP / STL

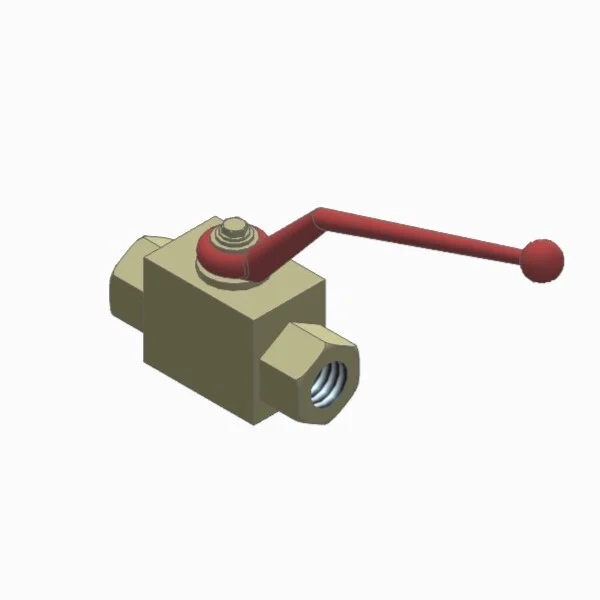

Threaded Ball Valve
A small manual ball-valve exterior for compact piping runs and general arrangement models.
Showing all 13 products.
What the files are for
Use these models for conceptual plant layouts, equipment spacing, visual communication and presentation scenes. They are exterior references rather than manufacturer-certified digital twins.
Included formats
Listings are prepared with the editable Solid Edge PAR source plus neutral STEP and mesh-based STL files. Confirm the exact download contents on each Gumroad page.
Before fabrication
Do not derive pressure ratings, connection dimensions, safety clearances or fabrication details from the models. Verify every critical dimension against project and manufacturer data.
